Structural glazing facade Systems AT 500 CS

The system AT 500 CS is designed for large scaled glass facades with a mullion sight line of 50mm. By using different types of mullion and transom profiles various requierements can be realised. It is also possible to apply different kinds of insert units like doors or hidden vents by retaining the structural glazing characteristic of the facade.

Your benefits:

• Maximum compatibility with existing AKOTHERM systems
• High thermal insulation
• Mullion – Transom – Construction
• All-glass optics
• Proven and established manufacturing technology

Specifications

Heat transfer
EN ISO 10077-2: Um -value = up to 0,80 W/(m²K)

Air permeability
EN 12152: Class AE

Water tightness
EN 12154: Class RE 1200

Glazing
Filling thickness 34 to 50 mm

Installation depth
Mullion 45 to 188 mm and Transom 32 to 195 mm

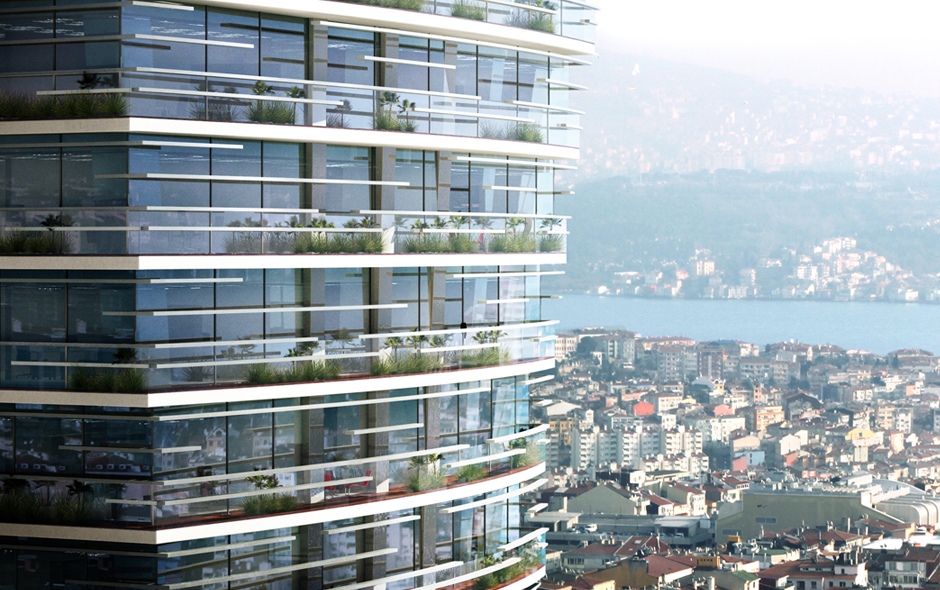

Credentials:

2D sections:
